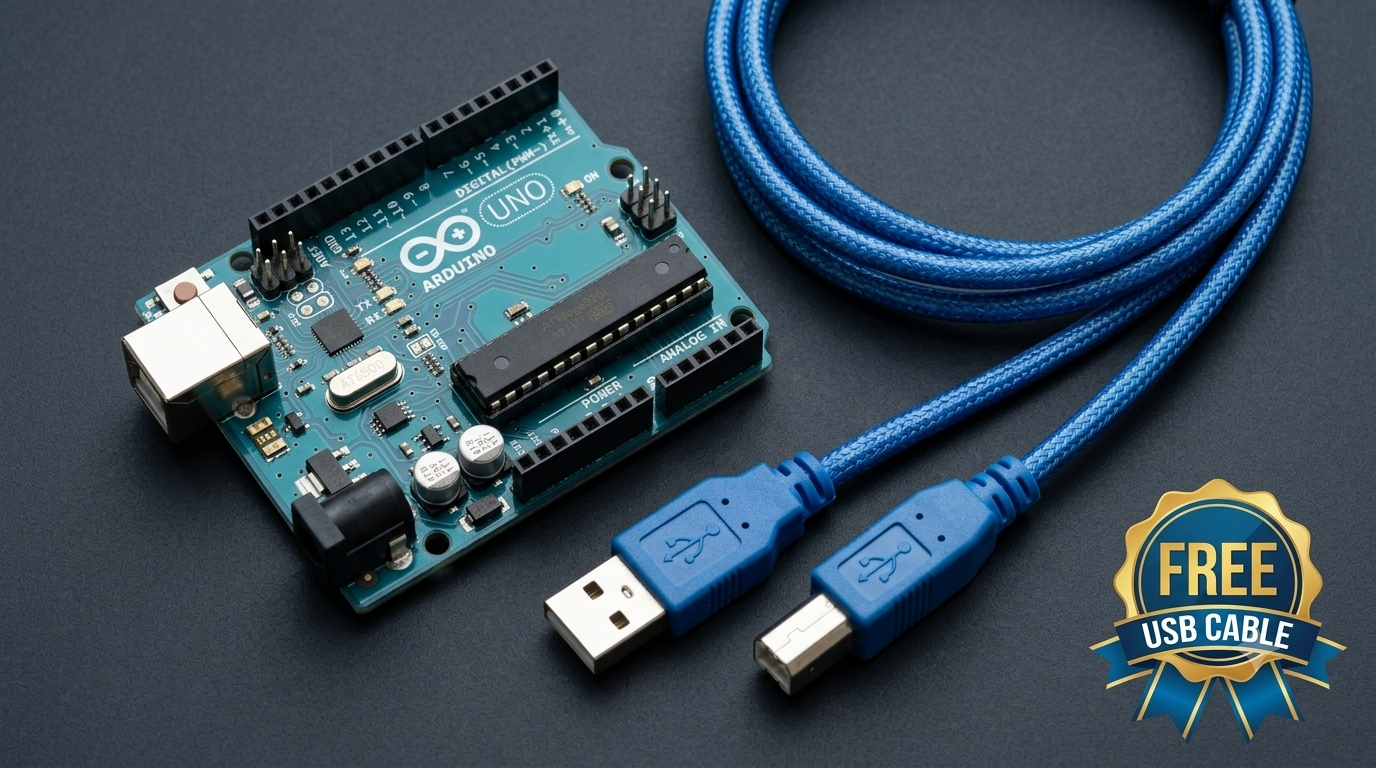

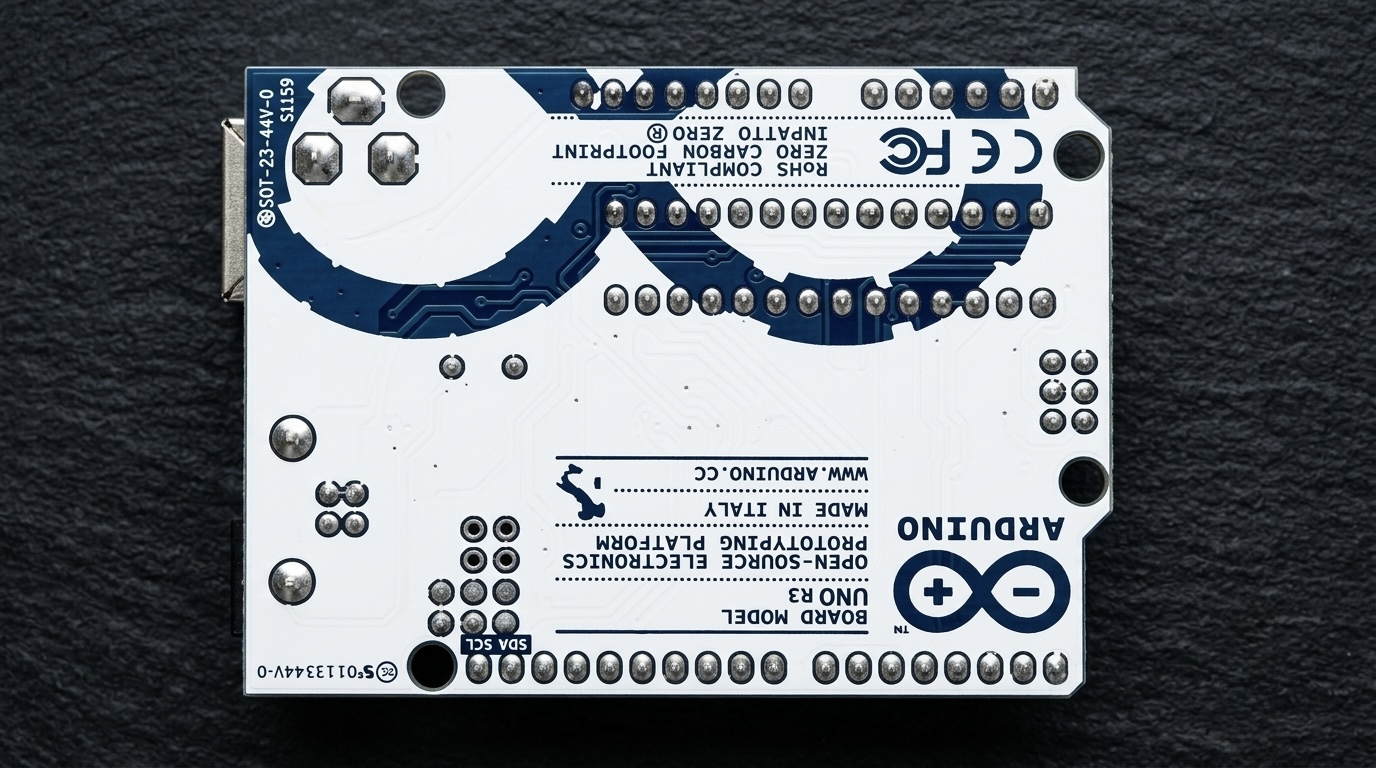

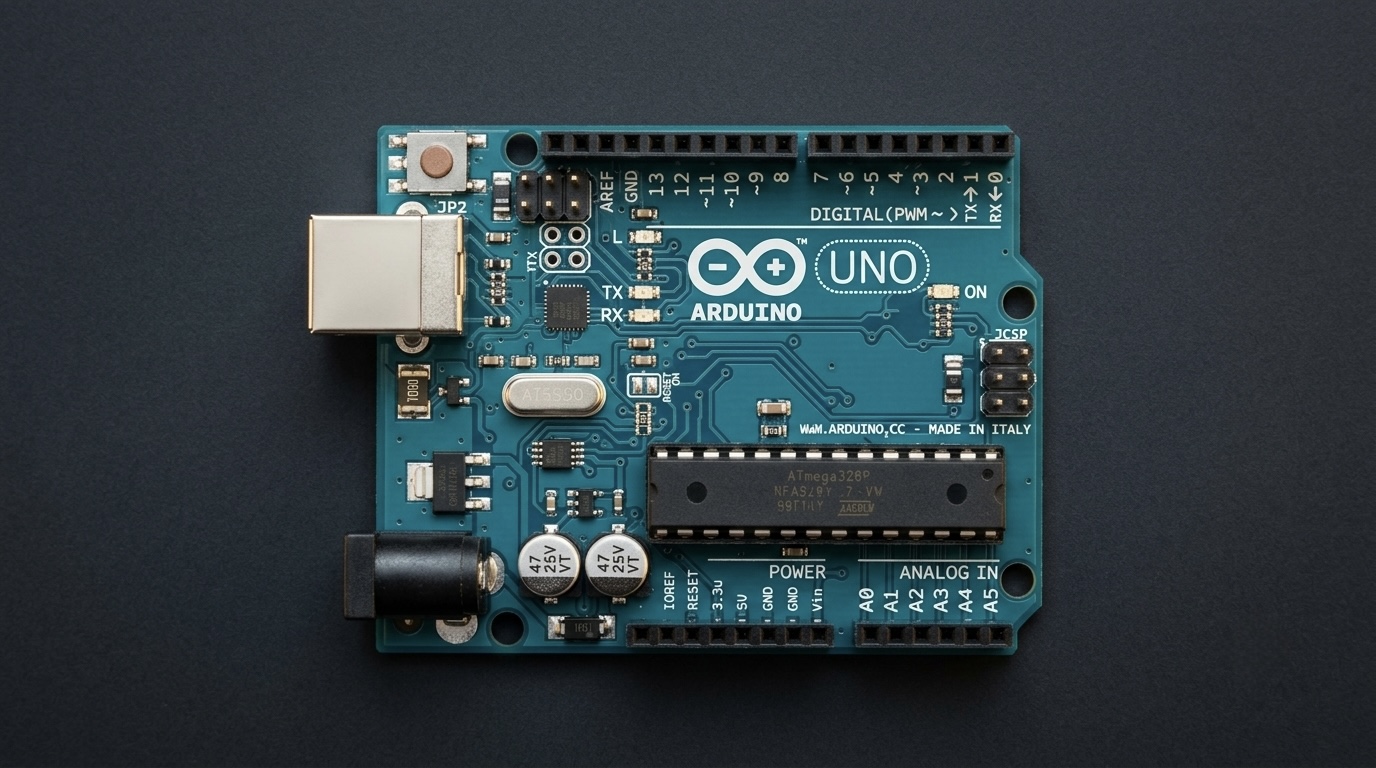

Original Quality Arduino Uno R3 DIP Board (Socketed ATmega328P & ATmega16U2 USB) – Made in Italy Design

Description

Arduino Uno R3 DIP Microcontroller Board – The Ultimate Choice for Electronics & Robotics

Take your electronics, robotics, and automation projects to the next level with the high-grade Arduino Uno R3 DIP Development Board. Designed with true-to-original specifications (Italian layout), this version delivers the durability, flexibility, and performance that cheap surface-mount (SMD) clones simply cannot match.

Why Choose the DIP Version Over Cheap SMD Boards?

1. Socketed & Removable ATmega328P Chip:
The standout advantage of this board is the through-hole DIP-28 microcontroller chip seated in an IC socket. If an accidental high voltage or short circuit damages the microcontroller during experimentation, you do not have to discard the entire board. Simply pull out the damaged chip and plug in a fresh ATmega328P!

2. Genuine ATmega16U2 USB Interface:
Low-cost boards cut corners by using cheap CH340 or CP2102 converters that frequently run into driver errors and port connection issues on Windows and Mac. This premium Uno R3 features an authentic ATmega16U2 USB-to-serial converter, ensuring instant plug-and-play functionality, faster upload speeds, and compatibility as a native USB device (MIDI, HID keyboard/mouse emulation).

3. Standard Pinout & Shield Compatibility:
Fully compatible with all official Arduino Uno shields, expansion boards, sensors, and actuator modules. Features 14 digital input/output pins (including 6 hardware PWM outputs for motor speed and LED dimming) and 6 10-bit analog input channels (A0–A5).

4. Robust Power Regulation:
Equipped with a standard DC power jack (barrel jack) supporting 7V to 12V DC input, on-board 5V and 3.3V low-dropout voltage regulators, and auto-switching between USB and external power sources.

Technical Specifications:
• Microcontroller: Microchip ATmega328P (DIP Package)
• USB-to-Serial Controller: ATmega16U2
• Operating Voltage: 5V
• Recommended Input Voltage: 7V – 12V
• Digital I/O Pins: 14 (6 provide PWM output)
• Analog Input Pins: 6 (A0 – A5)
• DC Current per I/O Pin: 20 mA (40 mA absolute max)
• Flash Memory: 32 KB (0.5 KB used by bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz Crystal Oscillator

Applications:
• DIY Robotics: Obstacle avoiding robots, line followers, robotic arms.
• Smart Home Automation: IoT relay controllers, automated lighting, sensor monitoring.
• STEM & Engineering Projects: Microcontroller programming, logic design, prototyping.
• Sensor Interfacing: Temperature, ultrasonic distance, gas, gyroscope, and LCD/OLED displays.

Package Includes:
• 1 x Arduino Uno R3 DIP Development Board (Socketed ATmega328P)
